Blazing Productivity
The UltiMaker
Cheetah motion planner
Unlock new levels of efficiency with the new UltiMaker Cheetah motion planner, redesigned high flow print cores, built in accelerometer, new feeder system and improved firmware
Up to
500 mm/s
travel speed
50,000 mm/s2
acceleration
Collaborate
Create
Innovate
Digital Factory
The only 3D printing software you will ever need
Digital Factory is designed to streamline every step of your 3D printing workflow, from slicing, to file management and even maintenance. Scalable for any team or enterprise, Digital Factory makes managing your 3D printing projects easier, faster, and more collaborative.
Build Plates
Flexible build plate, optional glass build plate
Skip using glue and remove parts effortlessly with the PEI-coated flexible build plate. Its patent-pending design uses 25 magnets and 4 pins for perfect alignment – reducing the time spent using the S6 and increasing productivity.
Print Cores
Dual high flow print cores
The dual extrusion design works together with software and firmware features to allow you to combine any 2 materials no matter how different they are, which low material waste and high reliability.
Specs
Model
Build volume
Assembled dimensions
Print technology
Compatible filament
Weight
Maximum power output
Dimensional accuracy
Layer resolution
XYZ resolution
Feeder type
Display
Print core replacement
Print head
Nozzle diameters
XY speed, acceleration
Extrusion flow
System on module

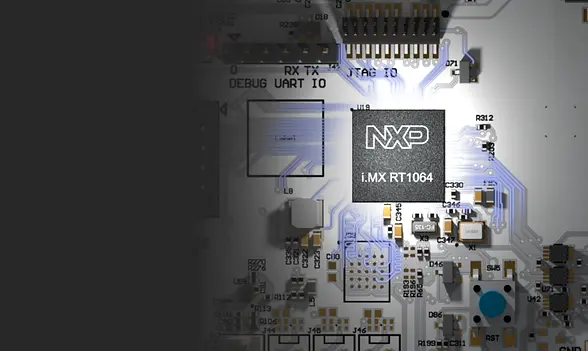

Real-time controller
Nozzle temperature
Nozzle heat-up time
Operating sound
Build plate leveling
Build plate
Build plate heat-up time
Operating temperature
Supplied free software
Supported OS
Plugin integration
Supported file types
File transfter
Ultimaker S6
330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)
W 495 x D 585 x H 780 mm (W 19.5 x D 23 x H 30.7 inches)
Fused Deposition Modeling (FDM)
2.85 mm
29.1 kg (64.2 lbs)
500 W
± 0.15 mm ± 0.15% feature nominal length*
0.25 mm nozzle: 150 - 60 micron 0.4 mm nozzle: 200 - 20 micron 0.6 mm nozzle: 300 - 20 micron 0.8 mm nozzle: 600 - 20 micron
± 0.15 mm ± 0.15% feature nominal length*
Dual-geared feeder, reinforced for composite materials
4.7-inch (11.9 cm) color touchscreen
Swappable print cores
Dual extrusion print head with an auto-nozzle lifting system, swappable print cores.
0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm
Up to 500 mm/s, up to 50.000 mm/s2, up to 100.000.000 mm/s3
Up to 35 mm3/s
ARM cortex quadcore at 1.8 GHz
600 MHz Arm-cortex M7
Up to 340 °C (644 °F)
< 2 minutes
< 51 dBA
Advanced active leveling
Steel flex plate, optional glass build plate
< 5 minutes (from 20 to 60 °C)
15 - 32 °C (59 - 90 °F)
UltiMaker Cura – print preparation software UltiMaker Digital Factory – printer management software
MacOS, Windows, and Linux
SolidWorks, Siemens NX, Autodesk Inventor
UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP
Wi-Fi (2.4 GHz), Ethernet, USB
